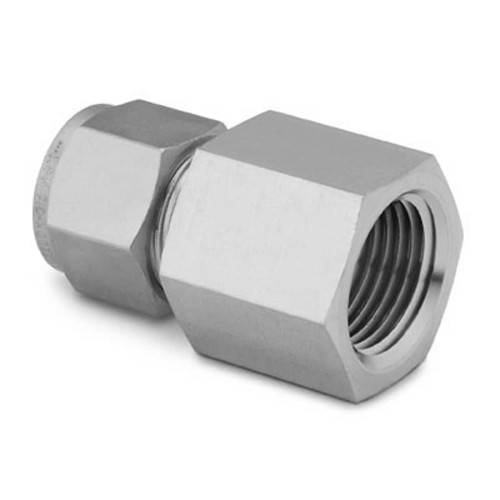

Swagelok® B-400-7-2 Pipe Female Connector, Fitting/Connector: Connector, 1/4 x 1/8 in Nominal, Tube OD x FNPT End Style, Brass
Part #/B-400-7-2
MFG #B-400-7-2
UNSPC #40172501
Swagelok® Pipe Female Connector, Straight, Fitting/Connector: Connector, 1/4 x 1/8 in Nominal, Tube OD x FNPT End Style, Brass, 1.23 in Length, 5000 psi Pressure
- Live-loaded, two-ferrule design
- Easy to install
- No torque is transmitted to tubing during installation
- Swagelok® gap inspection gauge ensures sufficient pull-up upon initial installation
- Swagelok® tube fitting ends are rated to the working pressure of tubing as listed in Swagelok® Tubing Data, MS-01-107, careful selection of high-quality tubing is important when installing safe, leak-tight systems
End Style Tube OD x FNPT Fitting/Connector Type Connector Length 1.23 in Material Brass Nominal Size 1/4 x 1/8 in Pressure Rating 5000 psi Type Straight
