Dormer Pramet

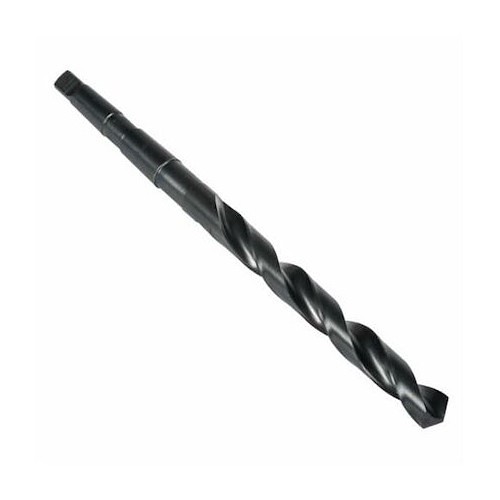

Dormer Union Butterfield® PTD20106 Taper Shank Drill Bit, #4 Drill, 1-3/32 in Drill, 1.0937 in Drill, High Speed Steel, Through Coolant (Yes/No): No
Part #20106
MFG #PTD20106
UNSPC #23241600
Dormer Union Butterfield® Taper Shank Drill Bit, Taper Shank Drill Bits, #4 Drill, 1-3/32 in Drill, 1.0937 in Drill, High Speed Steel, Through Coolant (Yes/No): No, Series: 209, 12-1/2 in Overall Length, 4xD Cutting Depth, 2 Flutes, Spiral Flute, 6 7/8 in Flute Length, 118 deg Point, Conventional Point Point, Right Hand Cutting, High Speed Steel Cutting Edge, Steam Oxide, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials, Graphite
- General Drilling Applications
- Steam oxide for increased tool life and lubricity
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
- A medium alloyed high speed steel that has good machinability and good performan
Drill Size - Decimal Inch 1.09375 in Overall Length 12-1/2 in Material High Speed Steel Finish Steam Oxide Point Angle 118 deg Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials, Graphite Cutting Depth 4XD Cutting Direction Right Hand Cutting Edge Material High Speed Steel Drill Diameter Measurement System Imperial Drill Size - Fraction 1-3/32 in Drill Size - Wire #4 Flute Length 6-7/8 in Flute Type Spiral Number of Flutes 2 Point Type Conventional Series 209 Through Coolant (Yes/No) No
