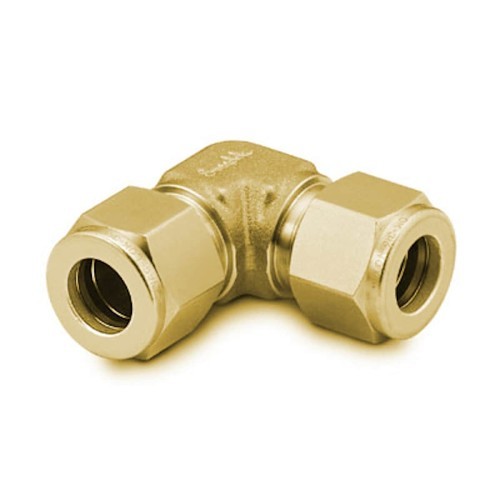

Swagelok® B-810-9 Pipe Elbow, Fitting/Connector: 90 deg Elbow, 1/2 in Nominal, Tube OD End Style, Brass
Part #B-810-9
MFG #B-810-9
UNSPC #40172801
Swagelok® Pipe Elbow, 90 deg Union, Fitting/Connector: 90 deg Elbow, 1/2 in Nominal, Tube OD End Style, Brass, 1.42 in Length, 3800 psi Pressure
- Live-loaded, two-ferrule design
- Easy to install
- No torque is transmitted to tubing during installation
- Swagelok® gap inspection gauge ensures sufficient pull-up upon initial installation
- Swagelok® tube fitting ends are rated to the working pressure of tubing as listed in Swagelok® Tubing Data, MS-01-107, careful selection of high-quality tubing is important when installing safe, leak-tight systems
End Style Tube OD Fitting/Connector Type 90 deg Elbow Length 1.42 in Material Brass Nominal Size 1/2 in Pressure Rating 3800 psi
