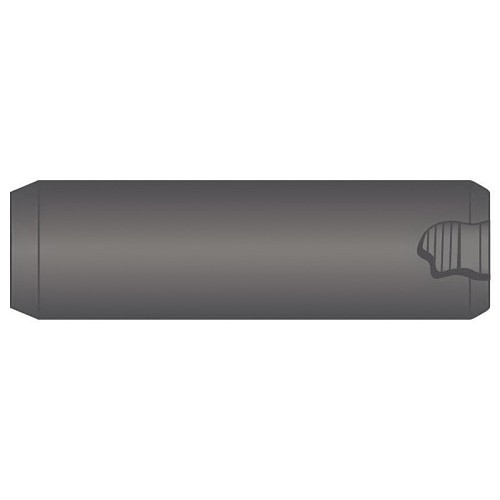

G.L.HUYETT™ Heritage™ DOWP-250-1000 Dowel Pin, 1/4 in Dia, 1 in Overall Length, Alloy Steel, Plain, Pull
Part #DPP025S100
MFG #DOWP-250-1000
UNSPC #31163203
Country Of Origin : IN
G.L.HUYETT™ Heritage™ Dowel Pin, 1/4 in Dia, 1 in Overall Length, Alloy Steel, Plain, Pull, DOWP Series
- For joining precision parts, tooling and fixtures
- Dowel pins are used as locking devices, pivots, hinges, shafts, jigs, or fixtures to precisely hold or align parts within machinery
- Designed to achieve maximum holding power with increased shear strength to absorb lateral stress
- They can manually align multiple workpieces
- Install flush to produce a smooth surface, or protrude beyond the workpiece to ease alignment of mating parts
- Turning or cold-forming for blank, thread cutting, heat treated, precision centerless grinding
- Identical to standard dowel pins but with chamfer on both ends and a threaded hole at one end to allow installation of a slide hammer to assist in remova
Diameter 1/4 in Finish Plain Hardness HRC 58-62 Material Alloy Steel Overall Length 1 in Series DOWP Thread Length 0.41 in Thread Size #8-32 Thread Type UNC Type Pull
