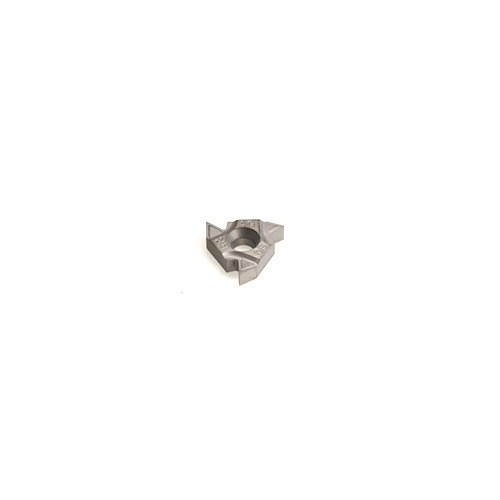

Iscar 5901519 ISCARTHREAD Laydown Threading Insert, 16ERMAG Insert, Triangular Shape, 8 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturer's Grade: IC908, Material Grade: H, K, M, P, S
Part #ISC5901519
MFG #5901519
UNSPC #23242107
Standard Pack 1
Country Of Origin : IS
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERMAG Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM AG 60 IC908, M Chipbreaker, 0.06 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
- External Thread Milling, External Threading and General Industry
Chipbreaker M Corner Radius 0.06 mm Cutting Direction Right Hand Finish PVD-TiAlN Coated Included Angle 60 Inscribed Circle 9.52 mm Insert Size 16 Insert Style 16ERMAG Length 16.49 mm Material Carbide Material Grade H, K, M, P, S Pitch 0.5 to 3 mm Series ISCARTHREAD Shape Triangular Thickness 3.63 mm Thread Standard 60 deg Partial Profile Thread Type External Threads per Inch 8 to 48 Type Laydown
