M.A. Ford

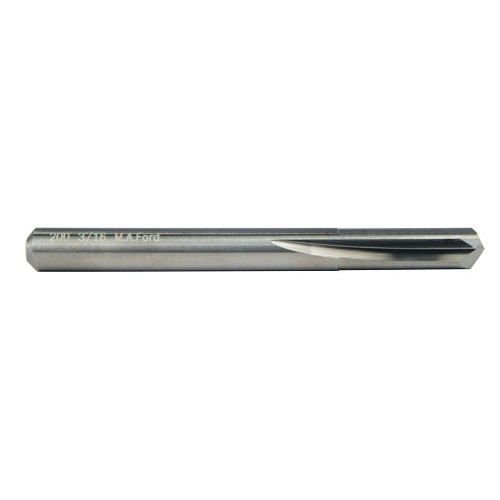

M.A. Ford® M.A. Ford® 20622 General Purpose Drill Bit, 3/8 in Drill Size - Fraction, 0.375 in Drill Size - Decimal Inch, 135 deg Point, Carbide, Uncoated
Part #MAF20622
MFG #20622
UNSPC #23241634
Standard Pack 1
Country Of Origin :
M.A. Ford® M.A. Ford® General Purpose Drill Bit, Solid, 3/8 in Drill Size - Fraction, 0.375 in Drill Size - Decimal Inch, 135 deg Point, Carbide, Uncoated, Series: Twister® Hi-Roc® Series 200, Imperial, 2-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Straight Flute, 1 in Flute Length, 3/8 in Dia Shank, Straight Shank, Right Hand Cutting, Carbide Cutting Edge, Applicable Materials: Cast Iron, Hardened Steel (35-65Rc), Non-Ferrous, Special Alloy, Steel and Stainless Steel
- Reamer type finishes are easily produced
- Produces chips without generating excessive heat
- Accurately sized holes are produced without annealing or softening the workpiece
- Both a production drill and a salvage or reclaim tool
- High feed rates with excellent chip evacuation
- Accurate hole size in a wide range of materials
- Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of m.a. ford® drills
- Minimal wander produces maximum precision, productivity and drill life
- Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life
- Three-flute geometries are available to reduce chip load/tooth and increase tool life in highly alloyed steels
Drill Size - Fraction 3/8 in Drill Size - Decimal Inch 0.375 in Applicable Materials Cast Iron, Hardened Steel (35-65Rc), Non-Ferrous, Special Alloy, Steel and Stainless Steel Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Carbide Tipped Drill Diameter Measurement System Imperial Finish Uncoated Flute Length 1 in Flute Type Straight Material Carbide Number of Flutes 2 Overall Length 2-1/2 in Point Angle 135 deg Series TwisterВ® Hi-RocВ® Series 200 Shank Size 3/8 in Shank Type Straight Type Solid
