OSG

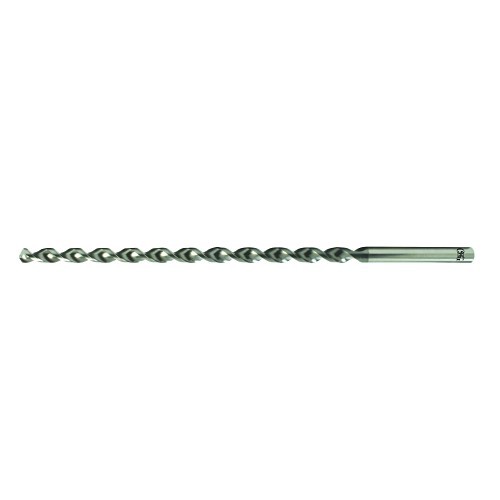

HELIOS® 17551511 1750 High Performance Taper Length Drill Bit, 27/64 in Drill - Fraction, 10.72 mm Drill - Metric, 0.4219 in Drill - Decimal Inch, 205 mm OAL, HSS-CO, WXL® Coated
Part #OSG17551511
MFG #17551511
UNSPC #23241639
Country Of Origin : JP
HELIOS® Drill Bit, High Performance Taper Length, Series: 1750, 27/64 in Drill - Fraction, 10.72 mm Drill - Metric, 0.4219 in Drill - Decimal Inch, 205 mm Overall Length, 145 mm Cutting Depth, 2 Flutes, Fast Spiral Flute, 145 mm Flute Length, 27/64 in Shank, Straight Shank, 120 deg Point, R-Thinning Point, Right Hand Cutting, HSS-CO Cutting Edge, HSS-CO, WXL® Coated, Applicable Materials: Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel and Titanium
- Deep Hole and No Peck Drilling Applications
- Pat. low resistance web thinning reduces penetration force by as much as 35%
- OSG WXL nano coating technology higher coating oxidation temp and hardness dramatically improve wear resistance
- Pat. flat flute form looks like parabolic, but isn't this flute form ensures extra space while increasing chip evacuation velocity
- Pat. compound flute construction ensure chips curl tightly and move freely through the flutes to ensure stable evacuation
- Without coolant through
Applicable Materials Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel and Titanium Cutting Depth 145 mm Cutting Direction Right Hand Cutting Edge Material High Speed Steel-Co Drill Size - Decimal Inch 0.421875 in Drill Size - Fraction 27/64 in Drill Size - Metric 10.7156 mm Finish WXL® Coated Flute Length 145 mm Flute Type Fast Spiral Material High Speed Steel-CO Number of Flutes 2 Overall Length 205 mm Point Angle 120 deg Point Type R-Thinning Series 1750 Shank Size 27/64 in Shank Type Straight Type High Performance Taper Length
