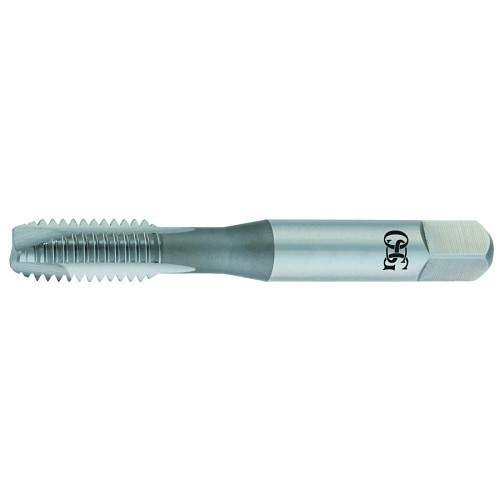

OSG 1981308 142 Spiral Point Tap, Right Hand Cutting, M8-1.25 Thread, D5 Thread Limit, 3.5P-4.5P Plug Chamfer, 2 Flutes, TiCN Coated, HSS
Part #OSG1981308
MFG #1981308
UNSPC #23241615
Country Of Origin : BR
OSG Spiral Point Tap, Series: 142, Measurement System: Metric, Size M8, Coarse, M8-1.25, 3.5P-4.5P Plug Chamfer, 2 Flutes, HSS, TiCN Coated, Class of Fit: H3, Right Hand Cutting, 18 mm Thread Length, 69 mm Overall Length, 8.07 mm Shank Dia, 40 mm Shank Length, 6061/7075 Aluminum, Cast Aluminum, Cast Iron, 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel and 1065 High Carbon Steel Material Application, D5 Thread Limit, Through Coolant (Yes/No): No
- For ferrous, non-ferrous materials, general threading and general purpose applications
- HSS material - increased wear resistance
- Spiral point - for through hole applications
- TiCN coating - improves wear resistance for extended tap life
Chamfer Type 3.5P-4.5P Plug Cutting Direction Right Hand Finish/Coating TiCN Coated Material High Speed Steel Measurement System Metric Number of Flutes 2 Overall Length 69 mm Series 142 Shank Diameter 8.07 mm Shank Length 40 mm Thread Length 18 mm Thread Limit D5/H3 Thread Size M8-1.25 Thread Standard UNC Through Coolant (Yes/No) No
