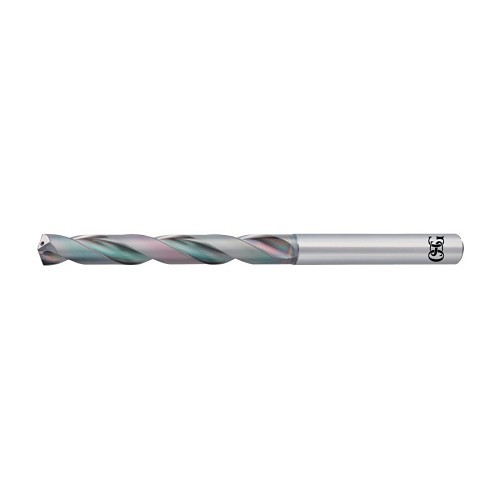

OSG A Brand® ADO 651037511 High Performance Jobber Length Drill Bit, 3/8 in Drill - Fraction, 9.53 mm Drill - Metric, 0.375 in Drill - Decimal Inch, 140 deg Point, Carbide, EgiAs Coated
OSG A Brand® ADO Jobber Length Drill Bit, High Performance, Series: 6510, Imperial, Drill Size - Fraction: 3/8 in, Drill Size - Metric: 9.53 mm, Drill Size - Decimal Inch: 0.375 in, 136 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 76 mm Flute Length, 9.5 mm Dia x 60 mm L Shank, Straight Shank, 140 deg Point, R-Thinning Point, Right Hand Cutting, Carbide Cutting Edge, Through Coolant: Yes, Carbide, EgiAs Coated, Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, Die Steel, Cast Iron, 6AI4V (30 HRC) Titanium, 35 HRC Hardened Steel, 35-45 HRC Hardened Steel, 45-50 HRC Hardened Steel, 300/400/17-4 PH Stainless Steel, 6061/7075 Aluminum, Cast Aluminum, Inconel Nickel Alloy, Aluminum Alloy, Ferrous and Non-Ferrous Materials
- OSG's EgiAs nano coating technology - higher coating oxidation temperature and hardness dramatically improve wear resistance
- Wavy form cutting edge design - sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
- Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
Drill Size - Fraction 3/8 in Drill Size - Decimal Inch 0.375 in Drill Size - Metric 9.53 mm Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Carbide Tipped Drill Diameter Measurement System Imperial Finish EgiAs Coated Flute Length 76 mm Flute Type Spiral Material Carbide Number of Flutes 2 Overall Length 136 mm Point Angle 140 deg Point Type R-Thinning Series 6510 Shank Size 9.5 mm Shank Type Straight Type High Performance Through Coolant (Yes/No) Yes
