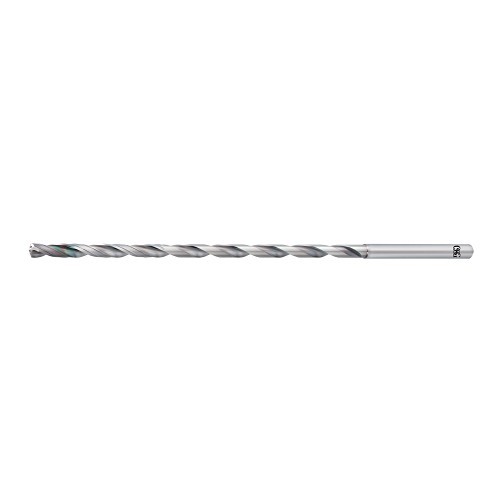

OSG A Brand® ADO 654034212 High Performance Taper Length Drill Bit With Through Coolant, 11/32 in Drill - Fraction, 8.73 mm Drill - Metric, 0.3438 in Drill - Decimal Inch, 260 mm OAL, Carbide, EgiAs Coated
Part #OSG654034212
MFG #654034212
UNSPC #23241605
Country Of Origin : JP
OSG A Brand® ADO Taper Length Drill Bit, High Performance, Series: 6540, Drill Size - Fraction: 11/32 in, Drill Size - Metric: 8.73 mm, Drill Size - Decimal Inch: 0.3438 in, 260 mm Overall Length, 20XD Cutting Depth, 2 Flutes, Spiral Flute, 210 mm Flute Length, 3/8 in Dia x 50 mm L Shank, Straight Shank, 140 deg Point, R-Thinning Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, EgiAs Coated, Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, Die Steel, Cast Iron, 300/400 Stainless Steel, 35 HRC Hardened Steel, 17-4 PH Stainless Steel, Cast Aluminum, 6AI4V (30 HRC) Titanium, 35-45 HRC Hardened Steel, Aluminum Alloy
- OSG's EgiAs nano coating technology - higher coating oxidation temperature and hardness dramatically improve wear resistance
- Wavy form cutting edge design - sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
- Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
Cutting Depth 20XD Cutting Direction Right Hand Cutting Edge Material Carbide Tipped Drill Size - Decimal Inch 0.34375 in Drill Size - Fraction 11/32 in Drill Size - Metric 8.7313 mm Finish EgiAs Coated Flute Length 210 mm Flute Type Spiral Material Carbide Number of Flutes 2 Overall Length 260 mm Point Angle 140 deg Point Type R-Thinning Series 6540 Shank Size 3/8 in Dia x 50 mm L Shank Type Straight Type High Performance
