OSG

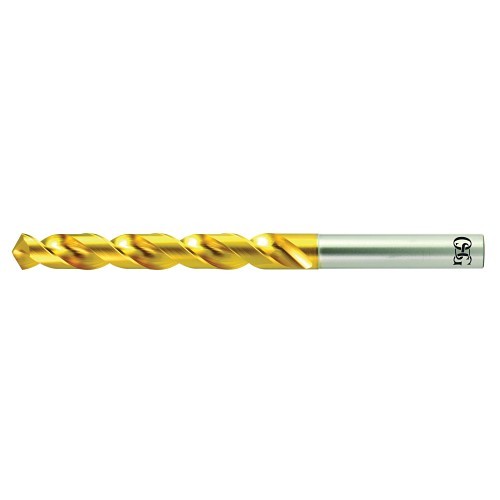

EXO® Ex-SUS-GOLD 8597237 1600 High Performance Jobber Length Drill Bit, #42 Drill - Wire, 2.38 mm Drill - Metric, 0.0935 in Drill - Decimal Inch, 130 deg Point, HSS-E, TiN Coated
Part #OSG8597237
MFG #8597237
UNSPC #23241634
Country Of Origin : JP
EXO® Ex-SUS-GOLD Drill Bit, High Performance Jobber Length, Series: 1600, Imperial, #42 Drill - Wire, 2.38 mm Drill - Metric, 0.0935 in Drill - Decimal Inch, 62 mm Overall Length, 1-11/16 in Cutting Depth, 2 Flutes, Spiral Flute, 30 mm Flute Length, 3 mm Dia Shank, Straight Shank, 130 deg Point, S-Thinning Point, Right Hand Cutting, HSS-E Cutting Edge, Through Coolant (Yes/No): No, HSS-E, TiN Coated, Applicable Materials: Aluminum, Low/Medium Carbon Steel and Stainless Steel
- SUS and General Applications
- X-thinning point geometry no center drills needed, achieves high accuracy high shearing forces ideal in gummy materials
- HSS vanadium substrate added heat resistance via 3% vanadium content yields superior performance to standard high speed steel drills
- Titanium nitride coating increased hardness and lubricity increases wear resistance thereby extending tool life
- As small as 0.5 mm in diameter increments every 0.01 mm
Drill Size - Decimal Inch 0.0935 in Drill Size - Metric 2.38 mm Drill Size - Wire #42 Applicable Materials Aluminum, Low/Medium Carbon Steel and Stainless Steel Cutting Depth 1-11/16 in Cutting Direction Right Hand Cutting Edge Material High Speed Steel-E Drill Diameter Measurement System Imperial Finish TiN Coated Flute Length 30 mm Flute Type Spiral Material High Speed Steel-E Number of Flutes 2 Overall Length 62 mm Point Angle 130 deg Point Type S-Thinning Series 1600 Shank Size 3 mm Shank Type Straight Type High Performance Jobber Length Through Coolant (Yes/No) No
