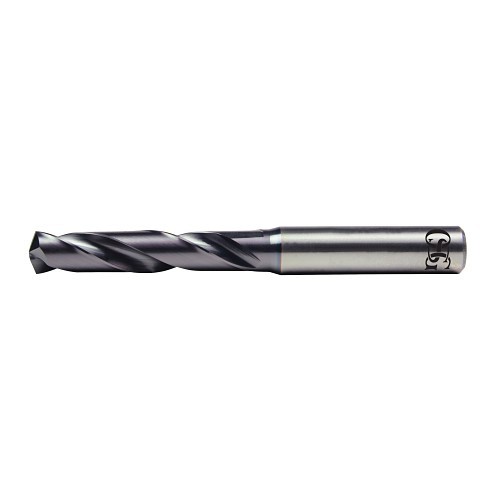

HY-PRO® CARB HP243-3937 Performance Stub Length Screw Machine Drill Bit, 10 mm Drill - Metric, 0.3937 in Drill - Decimal Inch, Carbide, EgiAs Coated
Part #OSGHP2433937
MFG #HP243-3937
UNSPC #23241605
HY-PRO® CARB Screw Machine Drill Bit, Performance Stub Length, Series: HP243, Metric, Drill Size - Metric: 10 mm, Drill Size - Decimal Inch: 0.3937 in, 89 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 47 mm Flute Length, 10 mm Dia Shank, Straight Shank, 140 deg Point, R-Thinning Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, EgiAs Coated, Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, 400 Die Steel, Cast Iron, 35 HRC Hardened Steel, Cast Aluminum, 5-45 HRC Hardened Steel
- Negative radial rake - stronger cutting edge to resist chipping
- Refined honing on cutting edge - provides more consistent performance from the first hole to the last hole
- EgiAs coating - higher coating oxidation temp and hardness dramatically improve wear resistance
- DIN shanks (6, 8, 10, 12, 14, 16, 18, 20 mm) - larger shank provides more rigidity and minimizes the number of holders/collets needed to accommodate all sizes
Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Carbide Tipped Drill Diameter Measurement System Metric Drill Size - Decimal Inch 0.3937 in Drill Size - Metric 10 mm Finish EgiAs Coated Flute Length 47 mm Flute Type Spiral Material Carbide Number of Flutes 2 Overall Length 89 mm Point Angle 140 deg Point Type R-Thinning Series HP243 Shank Size 10 mm Shank Type Straight Type Performance Stub Length
