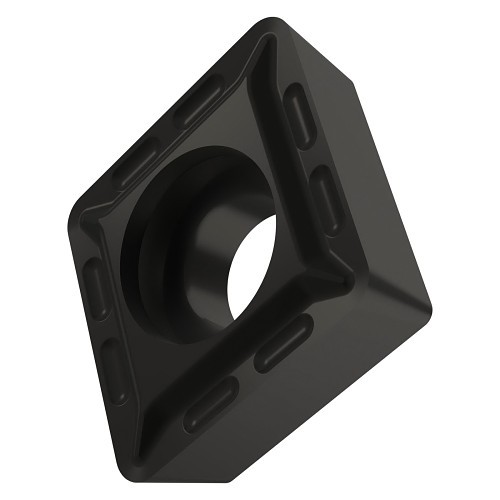

Pramet 7156706 Turning Insert Pramet, ANSI Code: CCMT 21.51-FF2:T9315, CCMT Insert, Material Grade: H, K, P, 21.51 Insert, Diamond Shape, 6 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturer's Grade: T9315
Part #PRA7156706
MFG #7156706
UNSPC #23242107
Country Of Origin : CZ
Pramet Turning Insert Pramet, CCMT Insert, 21.51 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 6.4 mm Length, 6 Seat, Positive Rake, FF2 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturer's Grade: T9315, ANSI Code: CCMT 21.51-FF2:T9315, ISO Code: CCMT 060204E-FF2:T9315, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel
- Fine Turning and Finishing
- T9315 grade functionally gradient substrate with fine structure
- Relatively low cobalt content
- Thick MT-CVD coating with a dominant Al2O3 layer
- Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
- Special surface finish for coating
- High cutting speeds
- Continuous to slightly interrupted cut
ANSI Code CCMT 21.51-FF2:T9315 Chipbreaker FF2 Corner Radius 0.4 mm Finish CVD-Al2O3 Coated For Use On Cast Iron, Hardened Steel and Steel Hole Diameter 2.9 mm Included Angle 80 Inscribed Circle 6.35 mm Insert Size 21.51 Insert Style CCMT Length 6.4 mm Material Carbide Material Grade H, K, P Rake Positive Relief Angle 7 deg Seat Size 6 Shape 80 deg Rhombic Thickness 2.38 mm
