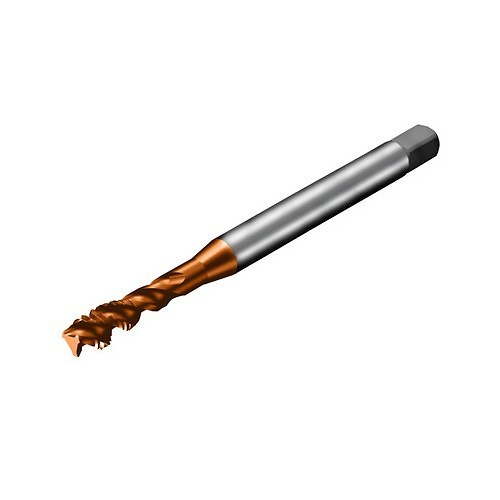

Sandvik Coromant 6539605 Spiral Flute Tap, Right Hand Cutting, 1/4-20 in, Bottom Chamfer, Right Hand, 3 Flutes, PVD, High Speed Steel, Alloy, Cast Iron, Non-Ferrous Material, Stainless Steel, Steel, Through Coolant (Yes/No): No
Part #SAN6539605
MFG #6539605
UNSPC #27112806
Sandvik Coromant Spiral Flute Tap, Right Hand Cutting, 1/4-20 in, Bottom Chamfer, Right Hand, 3 Flutes, PVD, High Speed Steel, Alloy, Cast Iron, Non-Ferrous Material, Stainless Steel, Steel, Through Coolant (Yes/No): No, Series: CoroTap 300 T300-XM100DE, Measurement System: SAE, UNC, Class of Fit: 2B, 0.3937 in Thread Length, 3.1496 in Overall Length, 0.2755 in Shank Dia
- 1/Pack
- C110 manufacturer grade
- Taps with spiral flute grinding
- The spiral flute transports the chips out of the hole
- Different helix angle for different applications
- Flute used for both cutting fluid and chip evacuation
- Different threading depths due to application and geometry
- 7 x 5.5 mm tap shank adaptive interface machine direction
Chamfer Type Bottom Class of Fit 2B Cutting Direction Right Hand Finish/Coating PVD Flute Direction Right Hand Material High Speed Steel Material Application Alloy, Cast Iron, Non-Ferrous Material, Stainless Steel, Steel Measurement System SAE Number of Flutes 3 Overall Length 3.1496 in Series CoroTap 300 T300-XM100DE Shank Diameter 0.2755 in Thread Length 0.3937 in Thread Size 1/4-20 in Thread Standard UNC Through Coolant (Yes/No) No
