Seco Tools

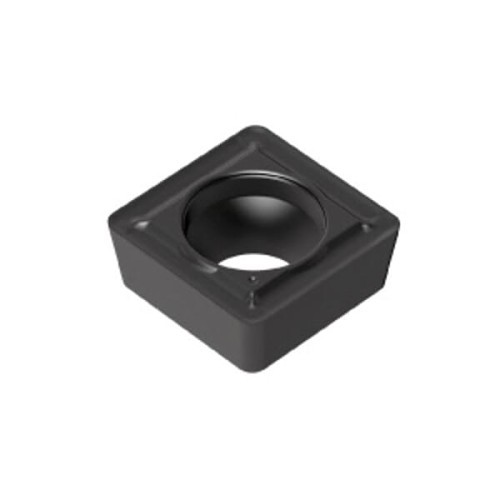

Seco SEC03097762 Drill Insert, Square, 11T308 Insert, SCGX Insert, 4 mm Thickness, 11.5 mm Inscribed Circle, Manufacturer's Grade: DP3000, Material Grade: C3, C4
Part #SEC03097762
MFG #SEC03097762
UNSPC #23242105
Seco Drill Insert, Peripherical, Square, 11T308 Insert, SCGX Insert, 4 mm Thickness, 11.5 mm Inscribed Circle, Manufacturer's Grade: DP3000, Material Grade: C3, C4, Series: Perfomax, 11.5 mm Width, 11.5 mm Length, P2 Chipbreaker, 0.8 mm Corner Radius, 90 deg Included Angle, ANSI Code: SCGX11T308-P2 DP3000, Left/Right Hand Hand, Carbide, TiCN+Al2O3 Duratomic Coated
- Features strong square inserts with four cutting edges, high drill body stability, a low-friction coating, unique chip flute design and inserts with modern grades that use Duratomic® technology
- Universal grade
- Superior wear resistance and edge toughness
- Tough grade for maximum application security
- Gradient substrate
ANSI Code SCGX11T308-P2 DP3000 Chipbreaker P2 Corner Radius 0.8 mm Finish TiCN+Al2O3 Duratomic Coated Included Angle 90 deg Inscribed Circle 11.5 mm Insert Size 11T308 Insert Style SCGX Length 11.5 mm Manufacturer's Grade DP3000 Material Carbide Material Grade C3, C4 Series Perfomax Shape Square Thickness 4 mm Type Peripherical
