OSG

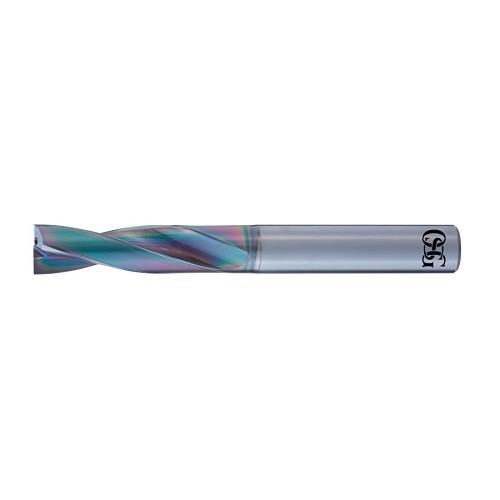

OSG A Brand® ADFO 3334442 5720 Advanced Performance Flat Stub Length Screw Machine Drill Bit With Through Coolant, 15.1 mm Drill - Metric, 0.5945 in Drill - Decimal Inch, Carbide, EgiAs Coated
Part #STIP43-01-3334442
MFG #3334442
UNSPC #23241605
Country Of Origin : JP
OSG A Brand® ADFO Screw Machine Drill Bit, Advanced Performance Flat Stub Length, Series: 5720, Metric, Drill Size - Metric: 15.1 mm, Drill Size - Decimal Inch: 0.5945 in, 115 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 68 mm Flute Length, 16 mm Dia Shank, Straight Shank, Right Hand Cutting, Carbide Cutting Edge, Carbide, EgiAs Coated, Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, Die Steel, Cast Iron, 35 HRC Hardened Steel, 35-45 HRC Hardened Steel, 45-50 HRC Hardened Steel, 300/400/17-4 PH Stainless Steel, 6061/7075 Aluminum, Cast Aluminum, 45-50 HRC Hardened Steel
- For a wide variety of drilling applications including inclined surfaces, curved surfaces, counter boring, eccentric holes, thin plates and more
- EgiAs coating - suppresses friction with the wear resistance layer and prevents breakage
- Wide chip room - smooth chip evacuation
- Unique end cut geometry - reduces cutting force to enable stable machining
- Coolant through - for reduced heat and improved chip evacuation
Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Carbide Tipped Drill Diameter Measurement System Metric Drill Size - Decimal Inch 0.5945 in Drill Size - Metric 15.1 mm Finish EgiAs Coated Flute Length 68 mm Flute Type Spiral Material Carbide Number of Flutes 2 Overall Length 115 mm Series 5720 Shank Size 16 mm Shank Type Straight Type Advanced Performance Flat Stub Length
