OSG

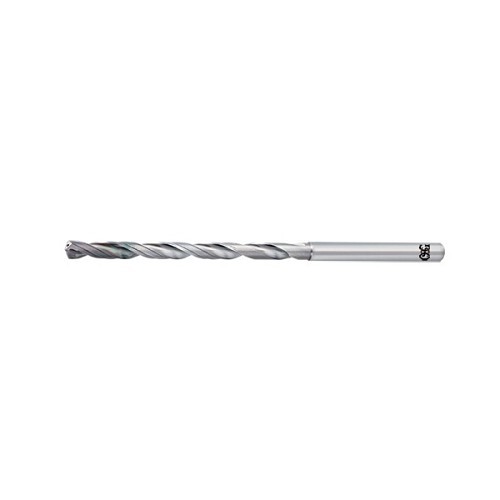

OSG A Brand® ADO 8697000 Drill, 10 mm Drill Size - Metric, 0.3937 in Drill Size - Decimal Inch, 140 deg Point, Carbide, EgiAs, Yes Through Coolant (Yes/No)
Part #STIP43-01-8697000
MFG #8697000
UNSPC #23241634
OSG A Brand® ADO Drill, High Performance, 10 mm Drill Size - Metric, 0.3937 in Drill Size - Decimal Inch, 140 deg Point, Carbide, EgiAs, Yes Through Coolant (Yes/No), 190 mm Overall Length, 2 Flutes, Wide Flute, 130 mm Flute Length, 10 mm Dia Shank, Straight Point, Applicable Materials: Ferrous and Non-Ferrous Metals
- OSG EgiAs Nano coating technology - higher coating oxidation temp and hardness dramatically improve wear resistance
- Wavy form cutting edge design - sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
- Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
Drill Size - Decimal Inch 0.3937 in Drill Size - Metric 10 mm Applicable Materials Ferrous and Non-Ferrous Metals Drill Diameter Measurement System Metric Finish EgiAs Coated Flute Length 130 mm Flute Type Wide Material Carbide Number of Flutes 2 Overall Length 190 mm Point Angle 140 deg Point Type Straight Shank Size 10 mm Type High Performance Through Coolant (Yes/No) Yes
