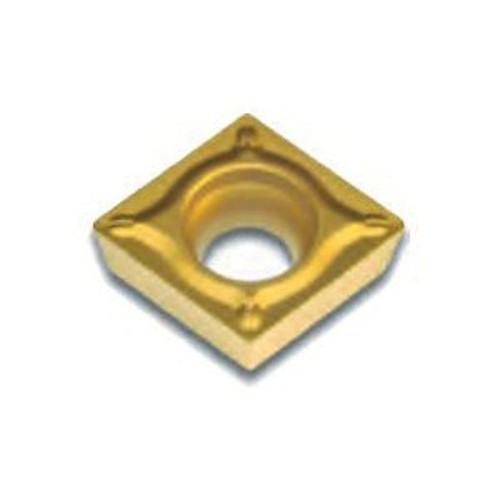

SUMITOMO CCMT21.51ESU-AC820P Turning Insert, ANSI Code: CCMT21.51ESU-AC820P, CCMT Insert, Material Grade: P, 21.51 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: AC820P
Part #SUMCCMT2151ESUAC820P
MFG #CCMT21.51ESU-AC820P
UNSPC #23242107
Standard Pack 1
SUMITOMO Turning Insert, CCMT Insert, 21.51 Insert, Diamond, 1/4 in Inscribed Circle, 0.94 in Thickness, 06 Seat, Positive Rake, ESU Chipbreaker, 1/64 in Corner Radius, 0.11 in Hole Dia, Manufacturer's Grade: AC820P, ANSI Code: CCMT21.51ESU-AC820P, ISO Code: CCMT060204N-SU-AC820P, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-Super FF Coated, Material Grade: P, For Use On: Steel
- Light Cutting Applications
- AC820P grade a P20 grade that features stability and longer tool life
- Employs special carbide substrate and super FF coat to improve on P20 wear and fracture resistance
- A grade suited to heavy interrupted cutting of ductile cast iron
ANSI Code CCMT 21.51ESU-AC820P Chipbreaker ESU Corner Radius 1/64 in Cutting Direction Neutral Finish CVD-Super FF Coated For Use On Steel Hole Diameter 0.11 in Included Angle 80 Inscribed Circle 1/4 in Insert Size 21.51 Insert Style CCMT Material Carbide Material Grade P Rake Positive Relief Angle 7 deg Seat Size 06 Shape 80 deg Rhombic Thickness 0.94 in
