Powers Fasteners

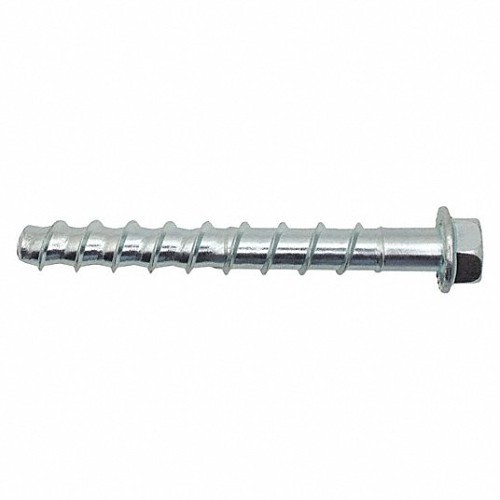

Powers® Dewalt PFM1411300 Screw Anchor, 3/8 in Diameter, 5 in Overall Length, Hex Washer Head Drive, Steel, 1-1/2 in Minimum Embedment Depth
Part #TCH037C0500
MFG #PFM1411300
UNSPC #31162104
Powers® Dewalt Screw Anchor, 3/8 in Diameter, 5 in Overall Length, Hex Washer Head Drive, Steel, 1-1/2 in Minimum Embedment Depth, Concrete, 3/8 in Drill, Zinc Plated, 3-1/2 in Maximum Work Thickness, 6930 lb Shear Strength, 11945 lb Tensile Strength
- For racking, shelving and material handling, support ledgers and sill plate attachments, barriers, guards and temporary supports, cracked and uncracked concrete, seismic and wind loading
- Designed for standard ANSI tolerance drill bits
- Patented thread design offers toughened threads for tapping high strength concrete
- Low installation torque in concrete and masonry
- Universal product for concrete and grouted/solid masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Can be installed closer to a free edge than traditional expansion anchors
- Fully removable and reinstallable in same hole
- Fast installation with powered impact wrench, but can also be installed manually
- Dia, length and identifying marking stamped on head of each anchor
- One-piece, finished head design
Applicable Materials Concrete Diameter 3/8 in Drill Size 3/8 in Finish Zinc Plated Head Drive Type Hex Washer Material Steel Maximum Work Thickness 3-1/2 in Minimum Embedment Depth 1-1/2 in Overall Length 5 in Shear Strength 6930 lb Tensile Strength 11945 lb
