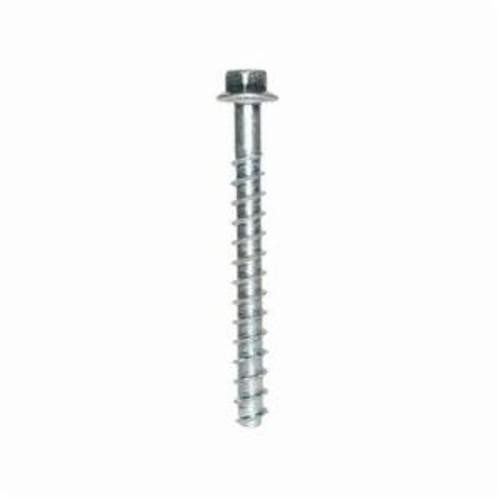

Simpson Strong-Tie® THD25300H Heavy Duty Screw Anchor, 1/4 in Dia, 3 in OAL, Hex Washer Head Drive, Carbon Steel, 1-5/8 in D Min Embedment
Part #TCHX026C0300
MFG #THD25300H
UNSPC #31162101
Standard Pack 50
Simpson Strong-Tie® Screw Anchor, Heavy Duty, Series: Titen HD®, 1/4 in Diameter, 3 in Overall Length, Hex Washer Head Drive, Carbon Steel, 1-5/8 in Minimum Embedment Depth, 1/4 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 3/8 in Head, 3-1/2 in Maximum Work Thickness, 2020 lb Shear Strength, 5195 lb Tensile Strength
- Formwork and Bracing
- Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
- Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional size
- Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
- Hex washer head requires no separate washer and provides a clean installed appearance
- Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
- 3/8 in Dia baseplate clearance hole
- 24 ft-lb maximum installation torque
- 1-3/4 in D minimum hole
- 1-1/2 in minimum edge distance
- 3 in minimum spacing
- 100000 psi yield strength
Applicable Materials Concrete, Masonry Diameter 1/4 in Drill Size 1/4 in Finish Zinc Plated Head Drive Type Hex Washer Head Size 3/8 in Material Carbon Steel Maximum Work Thickness 3-1/2 in Minimum Embedment Depth 1-5/8 in Overall Length 3 in Series Titen HD® Shear Strength 2020 lb Tensile Strength 5195 lb Type Heavy Duty
