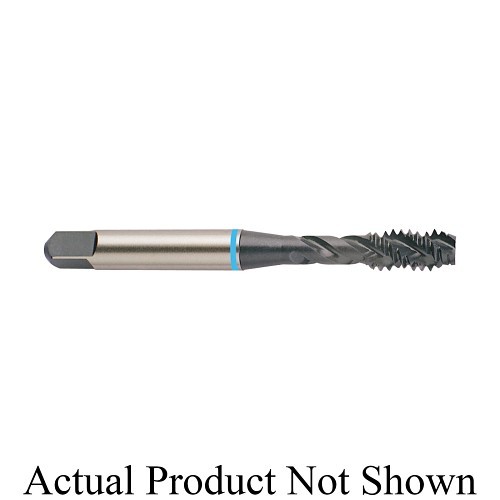

YG-1 BM365 Blue Ring High Performance Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, D5 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Hardslick Coated, Super HSS
YG-1 Spiral Flute Tap, Blue Ring High Performance, Series: BM Series, Measurement System: Metric, 6.8633 mm, M Thread, M8x1.25 Thread, Modified Bottoming Chamfer, 3 Flutes, Super HSS, Hardslick Coated, Class of Fit: 6H, Right Hand Cutting, 11.99 mm Thread Length, 69.09 mm Overall Length, 8.08 mm Shank Dia, Right Hand Flute Direction, D5 Thread Limit, Material Application: Medium to High Carbon Steel, Low Alloyed Steel, Steel Casting and Forging Alloy Steel, Heat Treatable Alloy Steel, Free Machining Stainless Steel, Heat and Corrosion-Resistant Stainless Steel, Valve Stainless Steel, Low Carbon Steel, Free Machining Carbon Steel, Pure Aluminum, Aluminum Alloy, Pure and Alloyed Copper, Free Machining Brass, Alloyed Brass, Zinc and Magnesium, Through Coolant (Yes/No): Yes
- Blind Hole Applications
- Use in a wide range of tapping equipment with synchronous or non-synchronous tapping cycles
- Super HSS for prevention of oversized threads
- Heat treated and heat-resistant steels, <850 N/sq-mm Rm, <=1200 N/sq-mm Rm
Chamfer Type Modified Bottoming Class of Fit 6H Cutting Direction Right Hand Finish/Coating Hardslick Coated Flute Direction Right Hand Material Super HSS Measurement System Metric Number of Flutes 3 Overall Length 69.09 mm Series BM Series Shank Diameter 8.08 mm Size 6.8633 in Thread Length 11.99 mm Thread Limit D5 Thread Size M8x1.25 Thread Standard M Through Coolant (Yes/No) Yes Type Blue Ring High Performance
