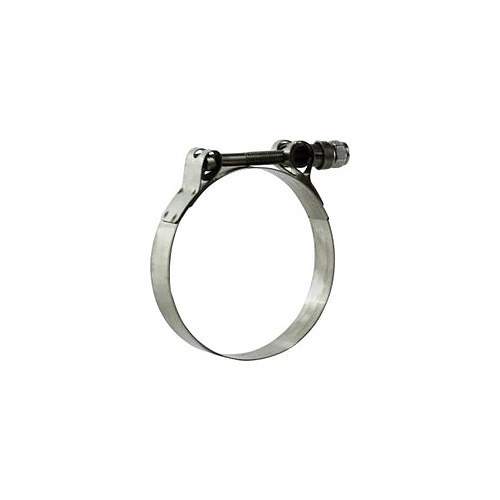

T-Bolt Clamp, 6 in Nominal, 5-25/32 to 6-1/16 in Outside Dia, 0.025 in Thickness, 301 Stainless Steel
Part #/M840600
MFG #840-600
UNSPC #31162906
Standard Pack 10
T-Bolt Clamp, 6 in Nominal, 5-25/32 to 6-1/16 in Outside Dia, 0.025 in Thickness, 301 Stainless Steel, 3/4 in Width
- All designs meet SAE J1508 specifications
- Torque Rating 75 in/lb
- Opens 1/16 in above and tightens 1/8 in smaller
- Nominal ID for a total of 3/16 in range for clamps sizes 150 through 250
- To provide a quick, yet effective means of clamping a variety of fittings to a wide range of hose
- T-Bolts can be applied with a standard 7/16" socket wrench. They provide 3600 sealing surface by using a shoe or formed bridge
- Torque Rating 75 in/lb
- Nuts are Self-locking
Material 301 Stainless Steel Nominal Size 6 in Outside Diameter 5-25/32 to 6-1/16 in Thickness 0.025 in Width 3/4 in
