Powers Fasteners

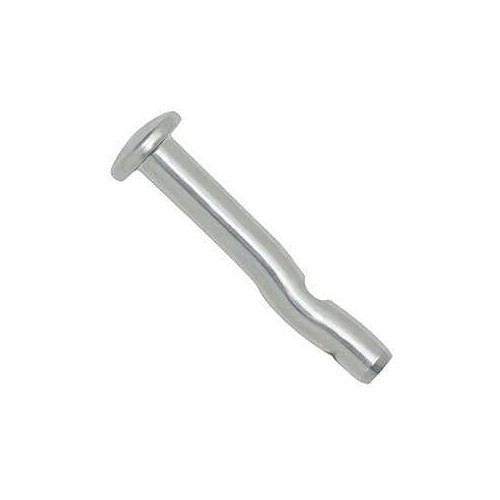

Powers® Spike® 5526 Rawl Spike Anchor, 1/4 in Dia, 2 in Overall Length, Mushroom Head
Part #SPM025C200Z
MFG #5526
UNSPC #31162100
Powers® Spike® Rawl Spike Anchor, Tamper Proof, 1/4 in Dia, 2 in Overall Length, Mushroom Head, 1/4 in Drill, 1-1/4 in Minimum Embedment Depth, Carbon Steel, Zinc Plated
- For cable trays and strut, pipe supports, fire sprinkler, concrete formwork
- 100/Box
- Pre-expanded anchor design allows for easy installation
- The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure
- This speeds up anchor installation and reduces the overall cost
- Five crimp anchor head styles are available to handle different applications that include fastening wood or light-gauge steel, attaching concrete formwork, hanging overhead support for sprinkler pipes or suspended ceiling panels
- Curved design helps speed up anchor installation and reduce the overall cost
- 5/16 in minimum fixture hole
- 3 in minimum spacing
- 3 in minimum edge distance
- 2600 to 2700 deg F freezing/melting point
- 610 lb at 4000 psi shear strength for concrete
- 275 lb at 4000 psi tensile strength for concrete
Diameter 1/4 in Drill Size 1/4 in Finish Zinc Plated Head Type Mushroom Material Carbon Steel Minimum Embedment Depth 1-1/4 in Series Crimp Drive® Shear Strength 395 lb at 2000 psi Tensile Strength 175 lb at 2000 psi Type Tamper Proof Overall Length 2 in
