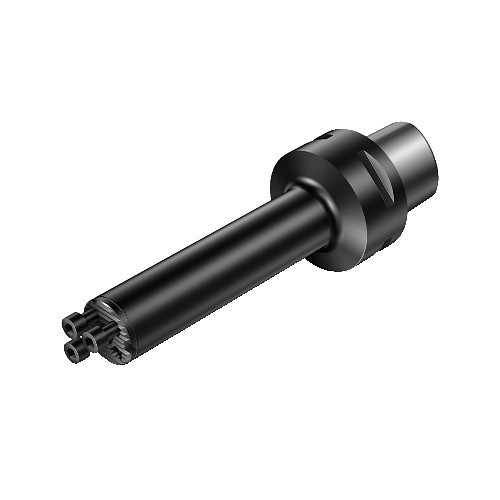

Sandvik Coromant 5729129 Boring Bar Adapter, 1.575 in Shank Dia, C5 x 40 mm, 1.575 in Body Dia Workpiece Side, ISO Code: C5-570-3C 40 194
Part #SAN5729129
MFG #5729129
UNSPC #23241601
Sandvik Coromant Boring Bar Adapter, Dampened Screw Mount, 1.575 in Shank Dia, C5 x 40 mm, 1.575 in Body Dia Workpiece Side, ISO Code: C5-570-3C 40 194, 7.638 in Gage Length, 1.575 in Shank Dia Workpiece Side, ANSI Code: C5-570-3C 40 194, Steel
- 1/Pack
- 0 deg body workpiece side
- 20 life cycle state
- 40 mm Dia body
- 0 deg half taper body
- Axial concentric and radial coolant entry
- 70 bar coolant
- 40 mm Dia maximum changer interference
- 194 mm L functional
- Straight non-rotating adaptor
Body Diameter Workpiece Side 1.575 in Bore Diameter 1.5748 in Shank Diameter 1.575 in Shank Diameter Workpiece Side 1.575 in ANSI Code C5-570-3C 40 194 Connection Size C5 x 40 mm Gage Length 7.638 in Material Steel Type Dampened Screw Mount Usable Length 7.638 in
